Key Highlights / Scope of Work
Cox Mechanical completed a comprehensive retrofit of the Innovation Design Building (IDB), transforming 500,000 sq. ft. of existing office space into life science laboratories. This major conversion included overhauling the mechanical infrastructure to meet life science facility standards. Equipment included 12 AHU’s, 6 EAHU’s, chillers, CT’s, 2 Kovekta skids, and boilers.
Challenges Faced

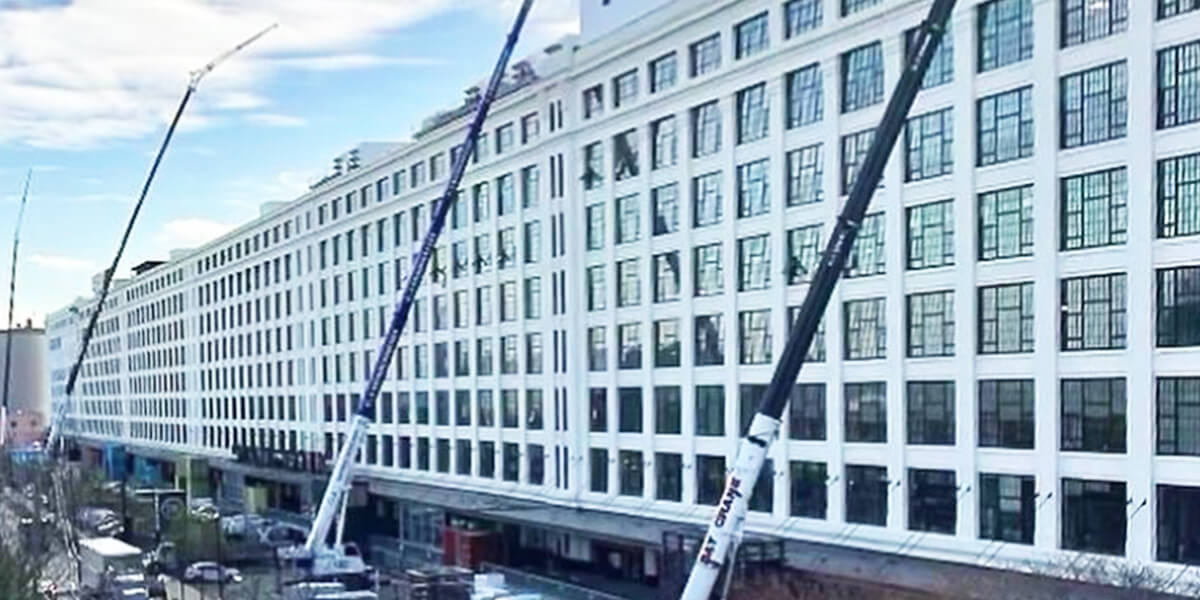

The project schedule was an aggressive 18-month installation conducted in a building that remained 50% occupied, requiring heightened coordination and safety protocols. All new mechanical equipment had to be hoisted and rigged onto an already congested roof space. Ductwork and exhaust systems were routed along the building’s exterior, demanding custom support and bracket systems. Double-stacked AHUs were tied into existing systems, necessitating new risers and structural supports. There were newly created shaft openings for 20’ duct and an existing underground fuel oil tank which needed to be float proof and remain under the water line.
Solutions and Innovations

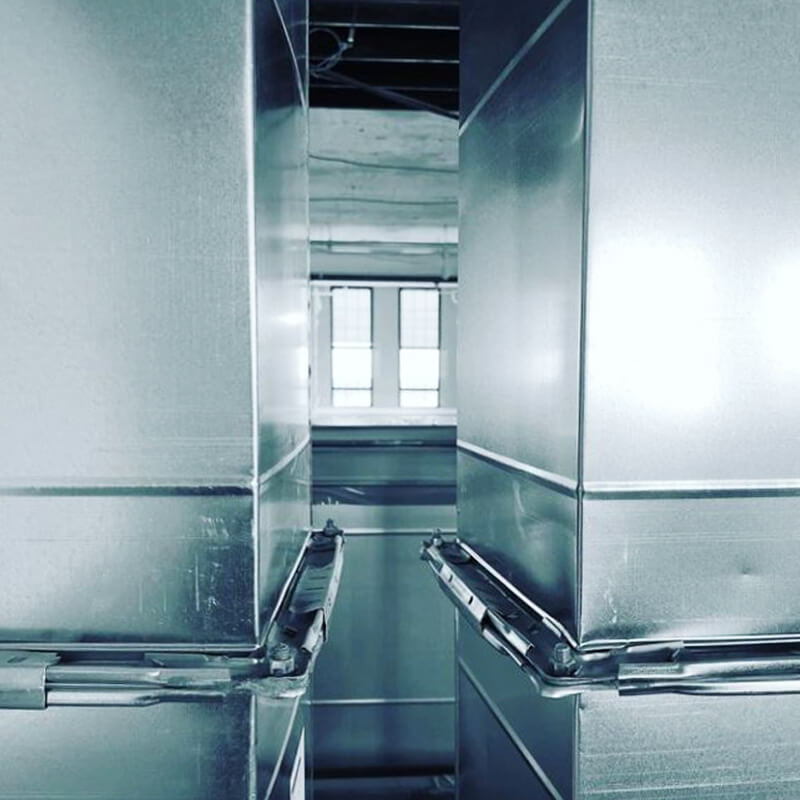

Cox coordinted equipment platforms and exhaust stacks in order to comply with FAA regulations and modeled restrictions. The large duct spanning the roof required engineering, custom supports, extensive roof surveys, and coordination. Extra large duct work and panels built to custom wind and snow ratings sat on steel designed and erected by Cox.
Results / Outcomes
Cox Mechanical successfully delivered this project meeting all performance, schedule, and regulatory requirements.
